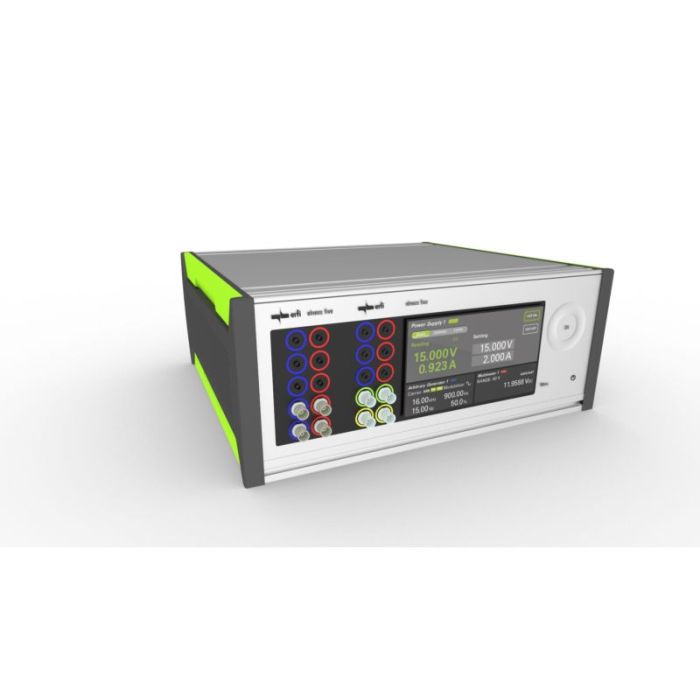

ERFI-ELNEOSFIVE-TYPE4

30V / 5A Precision regulation power supply with rectangular generator, Graphical Arbitrary generator 0-30V / 0-5A Power-, Energy- and Digitalmultimeter, fast signal arbitrary generator incl. 2 function generators and counter 150 MHz

EL5.SA2.70.1 Standalone-housing 3 HE / 70 TE
EL5.1 Capacitive control center 7"-Multitouch
EL5.Z Additional plug-in unit
EL5.35 Precision DC-power supply incl. metering
EL5.35A Arbitrary generator
EL5.P Power-, Energy- and Digitalmultimeter
EL5.S Fast signal arbitrary generator

 This is an example configuration. Please contact us for other configurations

5 electronic units can be combined according to customer-specific needs: Regulating power supply units up to 60V/ 10A, Digital multimeters, 40A, 1000V, Energy meters, Functional generators and arbitrary waveform generators.

The control center of elneos five controls up to 6 devices simultaneously and another 8 plug-in units with maximum 4 devices can be connected at the left and right-hand side. This means that up to totally 32 devices can be controlled.

The end-to-end glass front of elneos five is completely equipped with capacitive technology. It is highly stable, scratch-resistant and vandal-proof.

The 7"large multitouch display of elneos five is operated by contact with up to 5 fingers and ensures an enormous ease of operation.
