VARISTAR CP 42U 600W 800D EMC MIL-STD901
142 524,00 kr
art.nr
10630-049

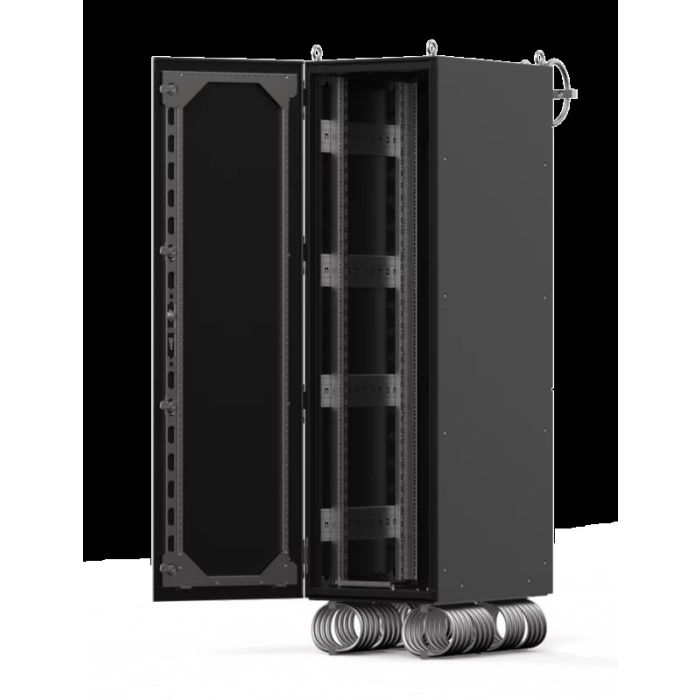

Varistar CP MIL 901E Cabinet, Military Certified for Shock, Vibration, EMC, and Corrosion 2000H 600W 800D
Varistar CP MIL 901E Cabinet, Military Certified for Shock, Vibration, EMC, and Corrosion
- NTS tested to MIL-DTL-901E for DSSM drop table IF EXISTS test with weight loading of 460 KGs
- NTS tested to Test Procedure TP-PR168728-00 for EMI Shielding - Complies with MIL-STD-461G
- NTS tested to Mil-STD-810H for Corrosion Resistance
- NTS tested to Mil-STD- 167-1A for vibration
- Doubly protected against corrosion, zinc-plated and powder-coated
- 4 shock absorbers at bottom and 2 shock absorbers at top
- Rear panel horizontally partitioned in 3 parts - Top cover plate covering the shock absorber fixing area, Bottom cover plate for cable ducting, Middle rear panel closing the gap between the cover plates
- EMC Bottom plate adapted with through holes to connect the shock absorbers directly to the frame
| art.nr | 10630-049 |
|---|---|
| Vikt i kg | 240.000000 |
| Ursprungsland | Frankrike |
| Fabrikat | Schroff |
| Normal Delivery time | 2-3 weeks |
| Material | Lakkert Stål |
| IP klass | IP55 |
| Höjd i U | 38 |
| Bredd i mm | 600 |
| Höjd i mm | 2000 |
| Djup i mm | 800 |
| Tull nr. | 85381000 |
| Produktens hemsida | click here |
| Tillverkarens art.nr | 10630-049 |
| Static Load in kg | 1600 |
| Frame material | Steel |
| Frame / Cladding Color | RAL 7021 / RAL 7021 |
| Complies with | IEC 60529 |
| Färg | RAL7021 |
