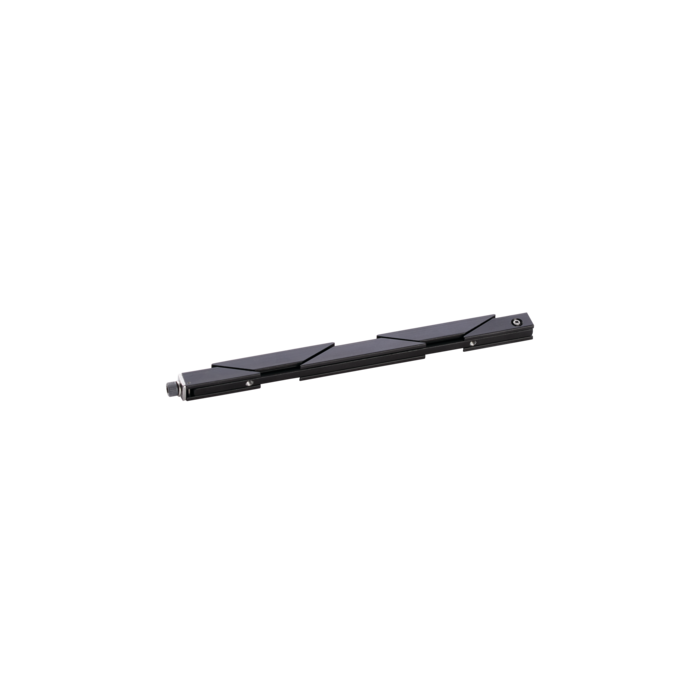

263HC High Clamp Force Card-Lok

nVent Schroff, The Series 263HC Card Lok also features a lighter weight, narrow profile ideal for retaining PCBs that are densely populated within the enclosure. The shafted design provides more uniform clamping force over the length of the Card Lok, while maintaining wedge and body alignment for easier installation. Profile 6.35 mm x 7.44 mm For cold wall applications Screw actuated Max expansion 8.89 mm Length 96.5 mm to 172.7 mm, 12.7 mm increments Flexible mounting options Available with black anodized, hard black anodized, or electroless nickel plating Weight 1.07 g/cm Average clamp force (4.80", black anodized) = 911 lbs 5 segment, shafted design
