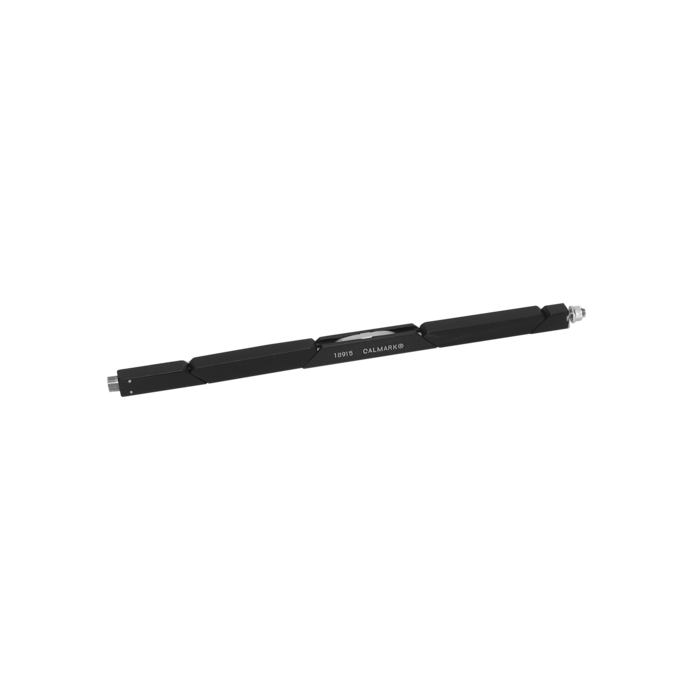

224 Torque Limiting Card-Lok

nVent Schroff, Secure attachment of PCBs in harsh environments: Innovative high thermal and clamp force designs for best in class performance Standard COTS or modified products to meet application requirements Designs for second level maintenance including torque limiting and toolless Card-Loks 224 Torque Limiting Card-Lok Clamp force, thermal transfer, life cycle and environmental (MIL 810) test results available Available with gold chem film, clear chem film, black anodized, hard black anodized, or electroless nickel plating Profile 5.33 mm (0.210") x 7.24 mm (0.285") 5 segment, non-shafted design Each unit tested at factory prior to shipment to ensure performance; customer provided with a certificate of conformance For cold wall applications Length 97 mm (3.80") to 325 mm (12.80"), 12.7 mm (0.5") increments Min expansion 8.64 mm (0.340") Flexible mounting options Weight 1.12 g/cm (0.100 oz/") Average clamp force (4.80", black anodized) = 236 lbs Torque limiting; ideal for 2nd level maintenance Screw actuated
