19"MODULE SUPPORT 3U 84HP 115D
564,00 kr
art.nr
24563-100
19"MODULE SUPPORT 3U 84HP 115D kan köpas i mängder av 1

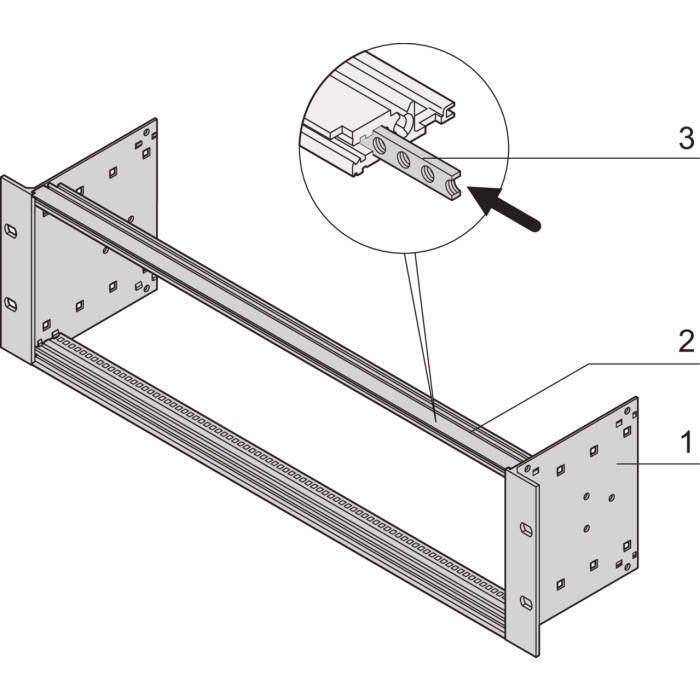

EuropacPRO 19" Subrack Kit for Power Distribution Module, Unshielded, 3 U, 84 HP, 115 mm
nVent Schroff, 19"MODULE SUPPORT 3U84HP115D, EuropacPRO 19" Subrack Kit for Power Distribution Module, Unshielded, 3 U, 84 HP, 115 mm, For mounting installation devices in accordance with DIN 43880., For mounting installation devices in accordance with DIN 43880 in sizes 1-3 with snap-in technology e.g. mounting sockets, circuit breakers or residual current circuit breaker. These can be fitted after the horizontal rail with lip DIN central rail (35/7.5) are fitted, Modular frame to accept e.g. power distribution modules, Internal and external dimensions in accordance with the IEC 60297-3-101 and IEEE 1101.1 standards, Aluminium side panels, Horizontal rails type "light", IEEE 1101.1 compatible
| art.nr | 24563-100 |
|---|---|
| Vikt i kg | 0.640000 |
| Ursprungsland | Tyskland |
| Fabrikat | Schroff |
| Normal Delivery time | 2-3 weeks |
| Djup i mm | 115 |
| Tull nr. | 4036088071300 |
| UNSPSC | 30211502 |
| Tillverkarens art.nr | 24563-100 |
| Static Load in kg | 2.5 |
| Complies with | IEC 60297-3-103 |
